BMW E90 E60 E9X E6X Parking Reverse Image Emulator / Rear View Camera Activator

BMW E9x/E6x CIC With PDC Reverse Image Emulator/Rear View Camera Activator

f:id:maketrust2016:20180625095247p:plain

You do not need to install any interface or decoder, the original camera terminal input, you can adjust the brightness, contrast, and so on.

It haven't backing track and obstacles (but more clear).

The Emulator comes with camera power output, Don't need reversing lights or other power.

You can use general CCD camera of common market  ! !(The Product haven't include the CCD camera





Important Note:
The product must installed by professional engineer who is good at video connection and coding, we don't provide detailed instruction on coding. Please make sure you know installation before ordering. The product do not accept replaced except from quality problems.(faulty return rate less 0.01%)

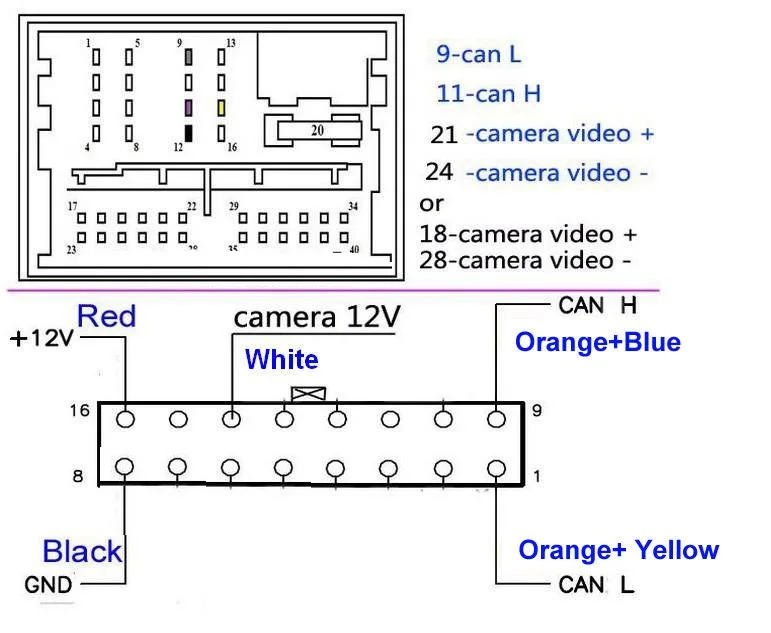

          e9x/e6x               CIC-----15 Pin----->12V  Red

Reverse           CIC-----12 Pin----->GND  Black

Image              CIC-----11 Pin----->CAN  H  orange blue

Emulator          CIC-----9 Pin------>CAN  L   orange yellow
                        Camera-------12V------ White



To configure:  Add "3AG code CIC and PDC"  ,  Then modify the following items

MACRO_L6_PARKMENU  aktiv
MACRO_PDC          aktiv
MACRO_PDC_TOPVIEW  aktiv
TVC_WIDTH_0C       wert_02
